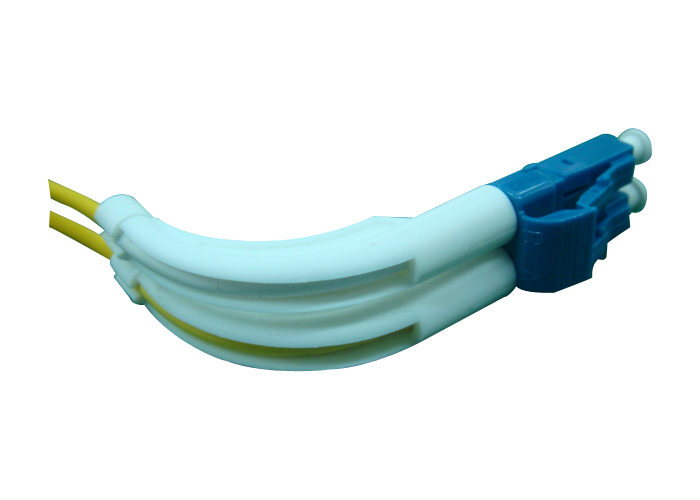

LC Connectors, Duplex SM Angled Boots

SINO OPTIC’s fiber optic LC small form factor (SFF) connectors utilize the familiar RJ-45 latching mechanism. The LC connector provides great space savings in the network. With accelerated growth demanding greater bandwidth in less physical space, LC connectors have been established as the connector of choice for high density patch panels and installations.

SINO OPTIC’s LC connector is an easy-to-use, low-cost solution without any sacrifice of performance.
SINO OPTIC’s LC connectors are compliant to EIA/TIA-604-10 and IEC 61754-20.

Description

Specifications

  • Insertion Loss:

≤ 0.15dB Typical Single mode

≤ 0.50dB Typical Multimode





  • Return Loss:

Ultra (UPC) ≥ 55dB





  • Durability:

1000 Mating Cycles





  • Operating Temperature:

-40°C​​ to +85°C



Features

  • Tight tolerance ferrules for low loss performance​​

  • Pull-proof design prevents signal interruption

  • Easy RJ45 coupling mechanism enables quick installation and the audible click signifies when connector is locked in place

  • Small form​​ factor size enables increased density compared to standard connector

  • Available with 0.9mm, 1.2mm, 1.6/2.0mm, 3.0mm, flex, and 50°/90° boots in multiple colors



Applications

  • Data Centers

  • Datacom

  • Telecom

  • Wireless



Compliances

  • EIA/TIA-604-10

  • IEC 61754-20

  • Telcordia-GR-326-CORE

  • RoHS
