Fiber Optic Ceramic Ferrules

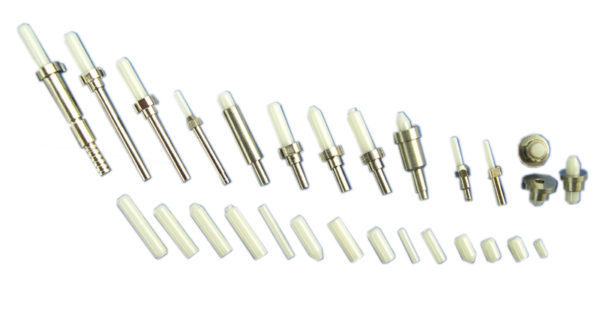

Currently there are mainly two types of long ceramic ferrules consisting of φ2.5mm and φ1.25mm outer diameters.

SINO OPTIC’s high precision standard zirconia ceramic ferrules are designed for high reliability and performance.

Available ferrule types from SINO OPTIC are SC, FC, LC, ST, MU, SMA with flat, dome, cone, step, or pre-angled end-faces.

We can also customize non-standard ferrules with any different length or inner diameter to meet your application needs.

Category: Fiber Optic Ceramic Ferrules

Description

Description

Specifications

SC, FC, ST Ferrule	Single mode	Multimode
Outside Diameter (mm)	ø2.4990
OD Tolerance (mm)	±0.0005	±0.001
Concentricity (mm)	≤0.001	≤0.004
Inner Diameter (mm)	ø0.125 to ø0.127
ID Tolerance (mm)	+0.001 / -0	+0.004 / -0
End Curve Radius (mm)	20 +5 / -10
Length (mm)	SC, FC: 10.50 ± 0.05 and ST: 12.70 ± 0.05

LC Ferrule	Single mode	Multimode
Outside Diameter (mm)	ø1.2490
OD Tolerance (mm)	±0.0005	±0.0005/-0.0015
Concentricity (mm)	≤0.001	≤0.004
Inner Diameter (mm)	ø0.125 ~ ø0.127
ID Tolerance (mm)	+0.001 / -0	+0.004 / -0
Length (mm)	6.40 +0.1 / -0

Features

Superior concentricity
High precision and reliability
Ultra low insertion loss and back reflection
Various end-faces with PC, UPC, APC cone, step or pre-angled type

Applications

Data Network
CATV & FTTX
Telecommunications
SC, FC, ST, MU, LC, SMA Connectors

Compliances

IEC 60874
Telcordia-GR-326-CORE
RoHS
